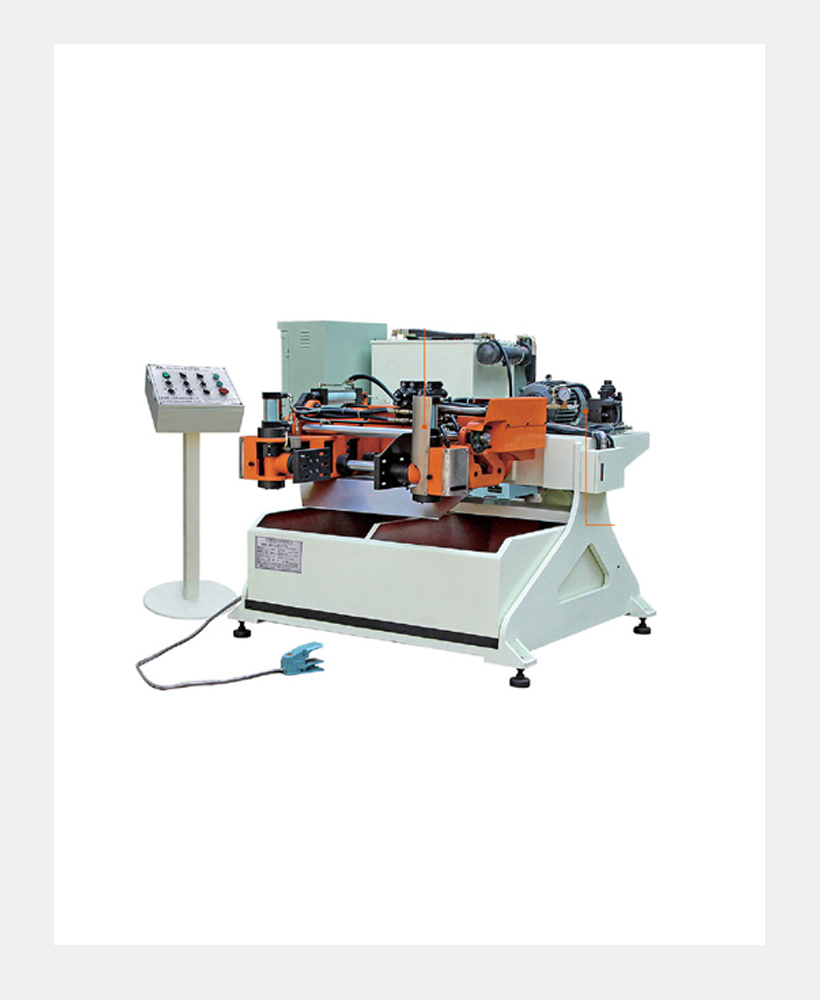

GDC (Gravity Gie Casting) Machine Control Panel Suppliers Pune

GDC (Gravity Gie Casting) Machine Control Panel Suppliers Pune

Nile Automation And Control System is GDC machine control panel suppliers in Pune, dealers and traders in Pune, Chakan, Ranjangaon, Talegaon, Maharashtra providing panels to monitor gravity die-casting machines' operation. The casting operation is done in a die-casting machine where a control panel is attached to control its complete process.

The GDC machine control panel includes a set of physical buttons, dials, switches, and digital displays. You might observe a screen indicating the current figures for temperature, pressure, and various other important parameters. As a GDC machine control panel supplier, our provided advanced panels also feature touchscreens to provide more direct interaction and navigation within the system.

Types of GDC Machine Control Panel:

We are known as GDC machine control panel dealers in Pune for supplying it with different types for various industrial applications.

  • Manual GDC machine control panel: It represents the most basic kind of control system, usually employed for smaller operations or in settings where complete automation isn't required. The control panel features fundamental mechanical switches, dials, and gauges, enabling the operator to manually modify essential parameters such as temperature, die pressure, and pouring duration. The operator maintains direct oversight of every element in the gravity die casting process, such as the temperature of the molten metal and the die, the rate at which the metal is poured into the mold, and the duration required for the casting to cool and solidify.
  • Semi-automatic GDC machine control panel: It provides higher automation over the manual system while still giving scope to the operator to intervene. This kind of panel is quite often used in mid-level production settings, where efficiency and consistency are needed but not required at a high level of automation. Semi-automatic systems incorporate programmable configurations that can be modified to meet the needs of each casting task. An operator might set parameters like pouring duration, cooling cycle, and die temperature, while the control panel manages the operation based on established logic or algorithms.
  • Automatic GDC machine control panel: It is designed for efficient and precise operations, it is typically found in large, high-output casting plants. These panels use programmable logic controllers (PLCs) and sensors to monitor the entire casting process with minimal intervention. Continuous monitoring of molten metal and die temperature, its pouring and cooling stages allows all parameters to be adjusted ensuring optimal conditions for each casting cycle, all controlled by a fully automated control panel. This degree of automation ensures that consistency in large-scale production processes and reduced chances of human error.

Technical Specifications of GDC Machine Control Panel

Specifications Manual GDC machine control panel Semi Automatic GDC machine control panel Automatic GDC machine control panel
Control method Manual Pre-programmed settings with manual overrides Fully Automatic
User Interface Basic Gauges, dials, switches Digital Displays Touchscreen interface with advanced graphical display
Temperature Sensor Accuracy ±5°C ±2°C ±1°C
Pressure Sensor Accuracy ±1% ±5% ±1%
Dimensions 400mm x 300mm x 200mm 600mm x 450mm x 250mm 800mm x 600mm x 350mm
Power Supply 240V,AC 240V,AC 440V,AC
Phase Single Single Three
Temperature Range 100°C to 700°C 100°C to 700°C 100°C to 700°C
Weight 5 to 10 kg 15 to 25kg 30 to 50 kg

Benefits of GDC machine control panel

Being GDC machine control panel dealers in Pune, below are some benefits of it.

  • Precision and Accuracy: This control panel assures that critical parameters including temperature, duration of casting, and die pressure are maintained within specific limits. This results in uniform and high-quality casting with reduced errors, and it increases the overall quality of the product.
  • Increased efficiency: Automation through control panels, semi-automated, and fully automated systems reduces human intervention and speeds up casting. This results in reduced cycle time, increased throughput, and improved manufacturing efficiency.
  • Safety: GDC control panels have multiple safety features like emergency stop buttons, temperature and pressure alarms, and automatic shutdown procedures in the event of system failure. Such safety features would prevent potential personnel and equipment loss or issues.
  • Ease of use: The interfaces, in particular touch-screen, will facilitate the task of operators in orienting and handling the system. Configurable settings, data management, and diagnostics are features that make the device easier to handle and maintain.
Applications of GDC machine control panel:
  • Automotive Industry
  • Aerospace Industry
  • Heavy Machinery
  • Industrial Equipment

As GDC machine control panel suppliers in Pune, dealers and traders in Pune, Chakan, Ranjangaon, and Talegaon, Nile Automation And Control System provides high-quality panels at competitive prices. Our expert team can evaluate each panel using multiple criteria before providing it to the customers. Therefore, we can enhance our reputation and also establish a customer base in the field. For further details and information, reach out to our team or check out the company!

FAQ:

GDC machine control panel is generally used to control or monitor those machines undergo gravity die casting processes.

This panel conists of many sensors and switches, which used to control processes of die casting in many industries.

GDC machine control panel can be automated with having touchscreen display or advanced features.
