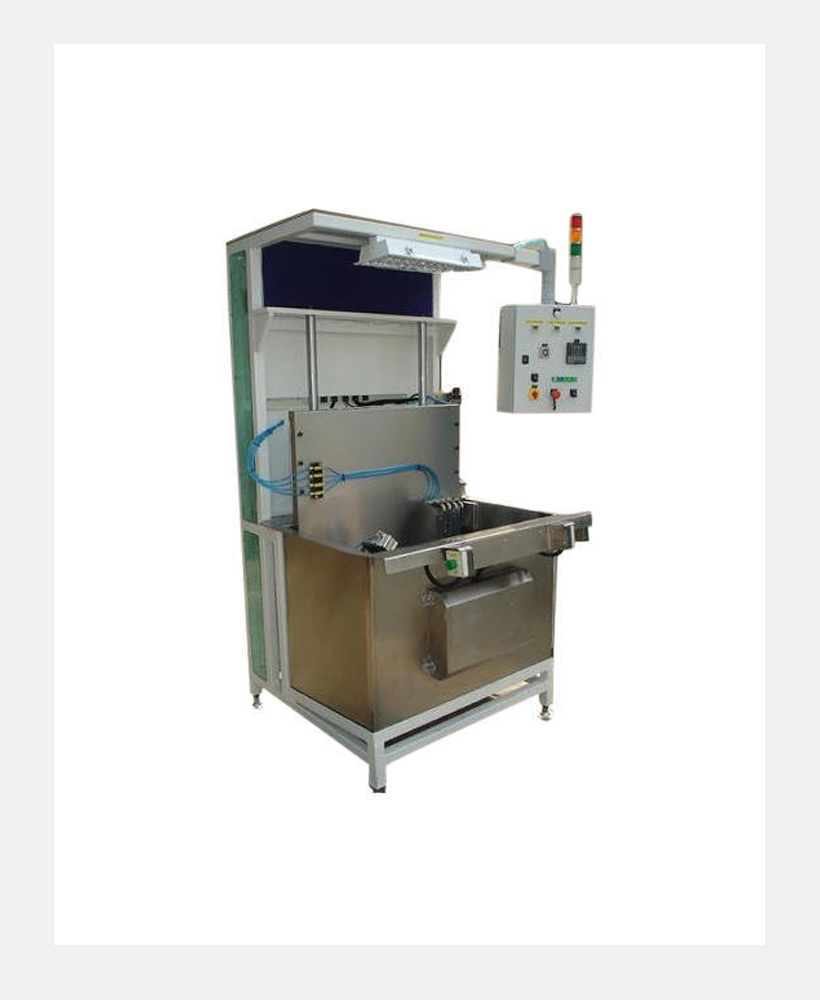

Leak Testing Machine Control Panel
  • Home
  • Leak Testing Machine Control Panel

Leak Testing Machine Control Panel Suppliers, Dealers in Pune

Leak Testing Machine Control Panel Suppliers, Dealers in Pune

Nile Automation And Control System is a leak testing machine control panel suppliers in Pune, dealers and traders in Pune, Chakan, Ranjangaon, and Talegaon, supplying top-notch quality panels to monitor leak testing machines. It can control or adjust some parameters like pressure flow rate, time and vacuum to show leak detection.

The leak testing machine control panel is used in many industries for the operation of the leak testing machine. It monitors or controls the test parameters to confirm that various components such as tanks, pipes, valves, and any other sealed products are leak-free. As a leak-testing machine control panel supplier, our offered panels are widely demanded in the market due to their features and quality.

Types of Leak Testing Machine Control Panel

We are reputed leak testing machine control panel dealers in Pune and provide it with different types for different applications.

  • Manual Leak Testing Machine Control Panel: The simplest form of control panel, mainly used for direct leak detection activities. This panel allows for manual control of parameters like pressure or vacuum adjustments using physical switches or dials. It includes pressure and vacuum gauges, with a switch to turn the test cycle on and off. Operators manually trigger the test and observe the system, with visual or analog displays providing feedback. While affordable, it lacks advanced features like data logging and automation, making it ideal for simpler testing scenarios.
  • Automatic Leak Testing Machine Control Panel: A fully automated system that manages the entire testing process. The panel features sensors to continuously monitor test parameters and regulate the system in real time. It can start the test cycle, adjust pressure or vacuum levels, and assess the outcomes without manual input. With built-in algorithms, it checks test integrity and determines success or failure. This control panel also includes safety features like emergency shutdowns for hazardous conditions. Ideal for high-throughput systems, such as automobile manufacturing, where speed, accuracy, and stability are crucial.
  • PLC-based Leak Testing Machine Control Panel: Uses a Programmable Logic Controller (PLC) as the core control unit, making it suitable for complex industrial environments. The PLC gathers data from sensors (pressure, vacuum, and flow rate) and monitors components like pumps and valves. It allows for customized test sequences and integrates with other production systems. PLC-based panels are flexible, store test data, and provide diagnostic results. Perfect for industries requiring continuous, rapid testing, offering reliability and seamless integration with automated processes.

Technical Specifications of Leak Testing Machine Control Panel:

Specifications Manual Leak Testing Machine Control Panel Automatic Testing Machine Control Panel PLC Based Testing Machine Control Panel
Control Method Manual (on/off switches) Automated Control Programmable logic controller (PLC)
Pressure Range (Test) 0–10 bar (0–145 psi) 0–10 bar (0–145 psi) 0–20 bar (0–290 psi)
Sensor Integration Limited, manual input Integrated pressure, vacuum, and flow sensors Fully integrated with advanced sensors
Safety Features Basic Overpressure protection, automatic pressure relief, safety alarms Overpressure protection, emergency stop, automatic pressure relief
Power Supply 110–240V AC 110–240V AC 110–240V AC
Application Simple leak testing for low-volume or less-critical parts High-volume industrial leak testing (automotive, HVAC, etc.) Large-scale manufacturing, automated production lines, critical testing (aerospace, medical)

Features of Leak Testing Machine Control Panel:

As leak testing machine control panel suppliers in Pune, here are some features of it.

  • Better Accuracy: Leak testing panels ensure precise accuracy in measurements. With pressure and vacuum sensors calibrated to deliver results within ±0.1% of the full range, these panels are ideal for detecting even the smallest leaks, making them highly effective for critical applications.
  • User-friendly Interface: The control panels are designed with user accessibility in mind. Many feature digital touchscreens or LCD screens, allowing operators to easily set test parameters, view real-time data, and adjust settings with minimal training. This simplicity enhances overall operational efficiency.
  • Safety: The control panels come with robust safety features to ensure safe operation. These include overpressure protection, automatic pressure release mechanisms, and an emergency stop function, safeguarding both the personnel and the system during testing processes.
Applications of Leak Testing Machine Control Panel

As leak testing machine control panel dealers in Pune, we have supplied a wide range of panels to various industries such as:

  • Automotive industry: Leak testing plays an important role in the automotive industry to ensure the integrity of components such as fuel tanks, exhaust systems, radiators, and airbags. Control panels are used to ensure that these components are drained during operation.
  • HVAC: Leaks are found in systems such as air conditioning, refrigeration systems, ductwork, etc., through the leak testing equipment in HVAC systems.
  • Packaging: When leaks are tested in the packaging, they verify that the seals of food and beverage packages, including chemical packaging, are intact. Control panels are necessary to detect leaks and avoid contamination.

Being a leak testing machine control Panel suppliers in Pune, dealers and traders in Pune, Chakan, Ranjangaon, and Talegaon, Nile Automation And Control System offers top-grade panels at affordable rates. Our highly skilled team can test every panel with several parameters before supplying it to the customers. Thus, we can raise our reputation and also gain a clientele base in the industry. For more details and information contact our team or visit the company!

FAQ:

Leak testing machine control panels are found in several industries such as automotive, aerospace, oil & gas, food & beverage and so on.

Yes, regular maintenance is be must to confirm its reliable performance for a longer duration.

The price of this panel is depend on several factors such as models, brands, material used and vendors.
